Traditional Sewage Treatment Plant

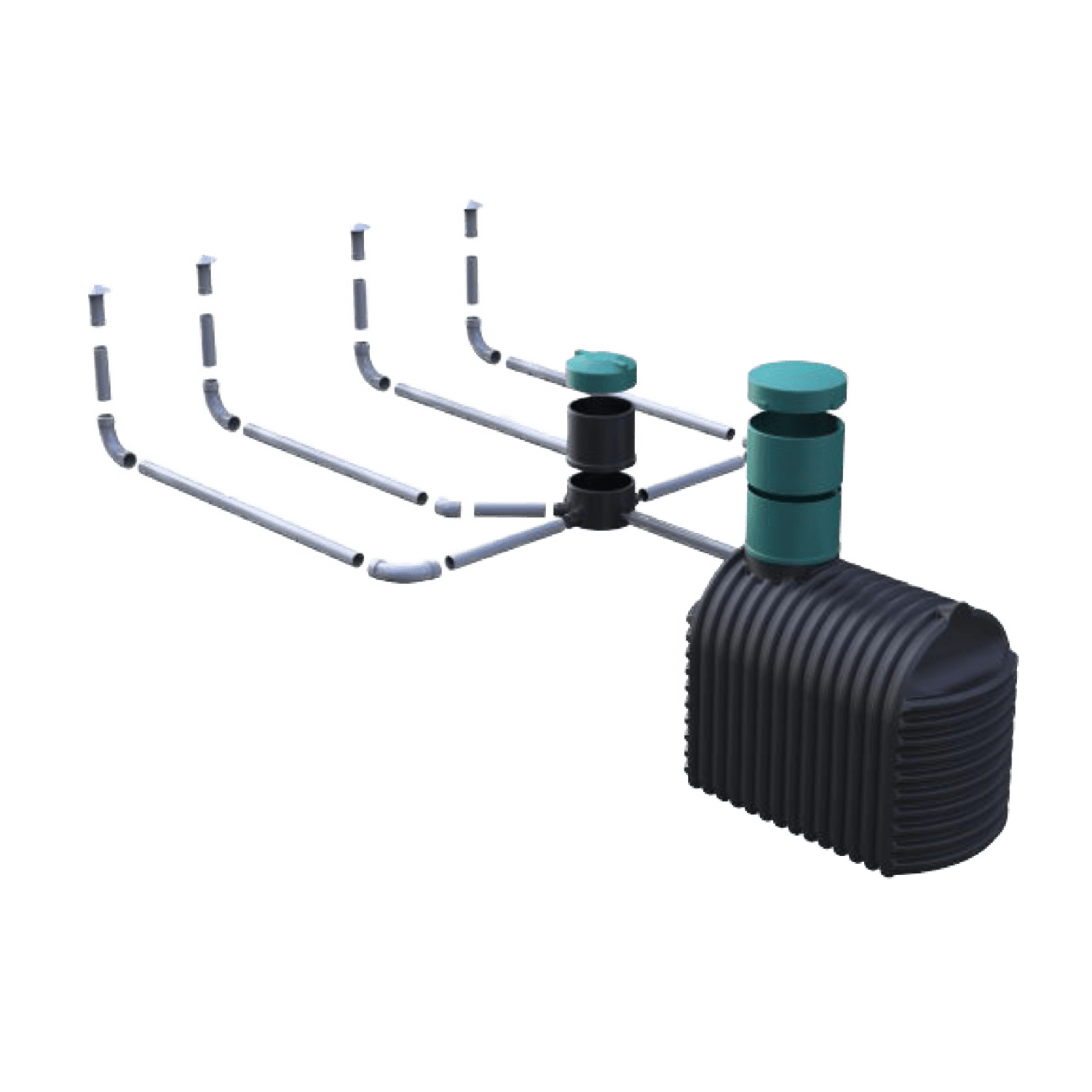

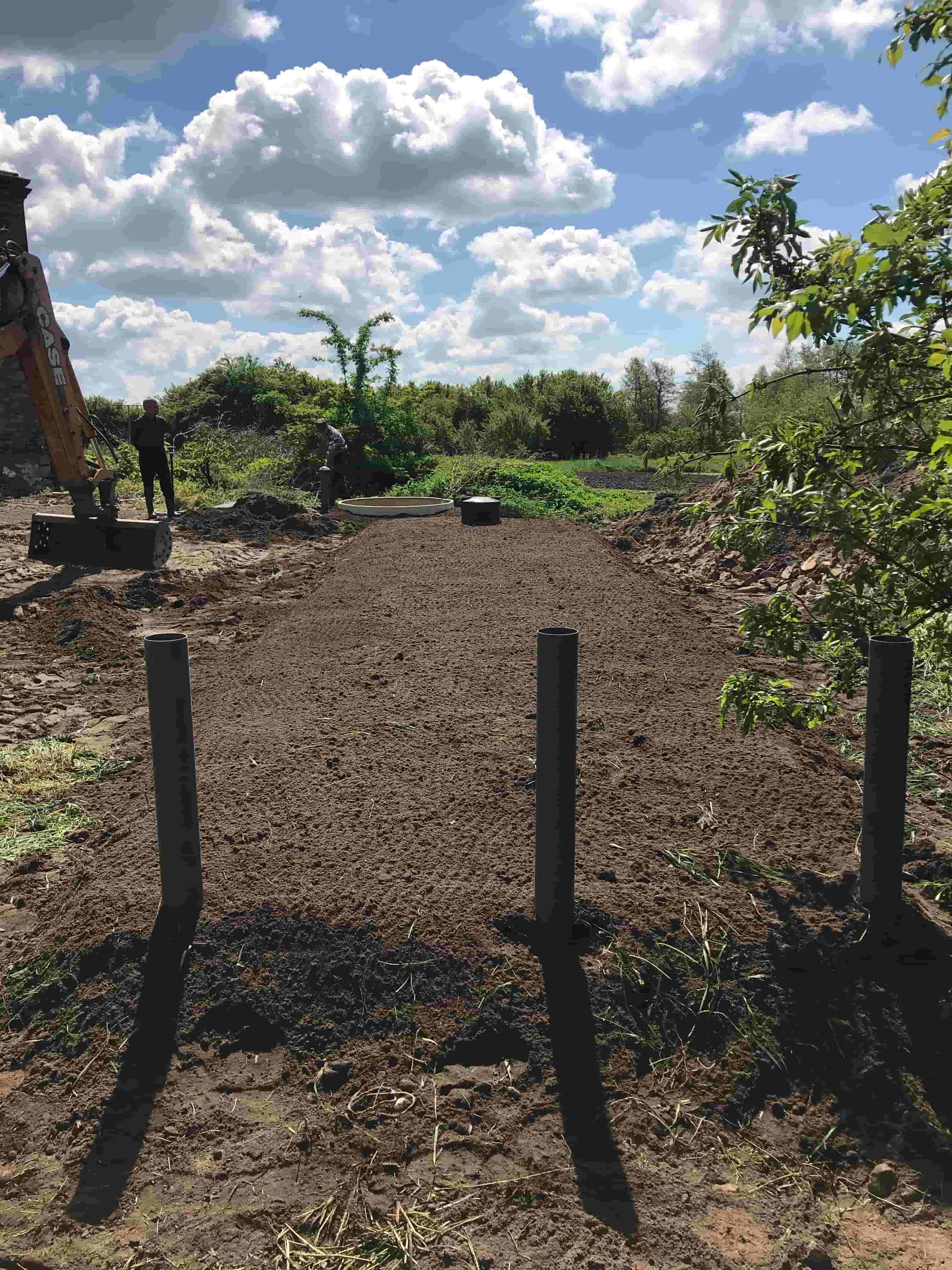

Traditional sewage treatment plants offered by JFC consist of a septic tank with a percolation system. Septic tanks are designed to remove suspended solids from domestic wastewater from residential buildings, using sedimentation, flotation, and filtration processes, as well as fermentation of the sludge resulting from retained solids. After preliminary treatment in the septic tank, the wastewater is directed to a drainage system, which consists of perforated pipes laid in the ground and through which the wastewater percolates. During their flow through its layers, biological processes occur, further purifying the wastewater under aerobic conditions.

Basic

OSG-DR8

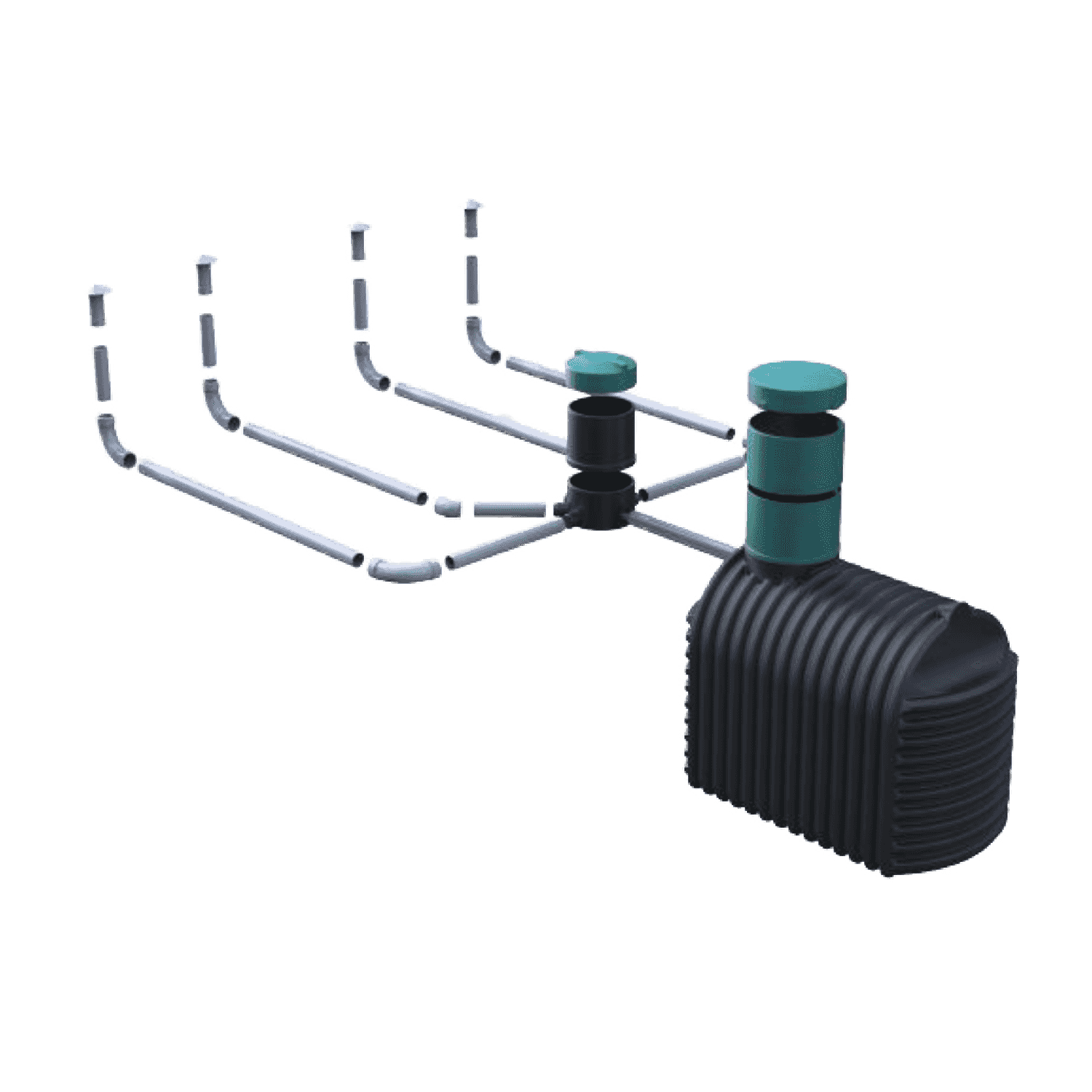

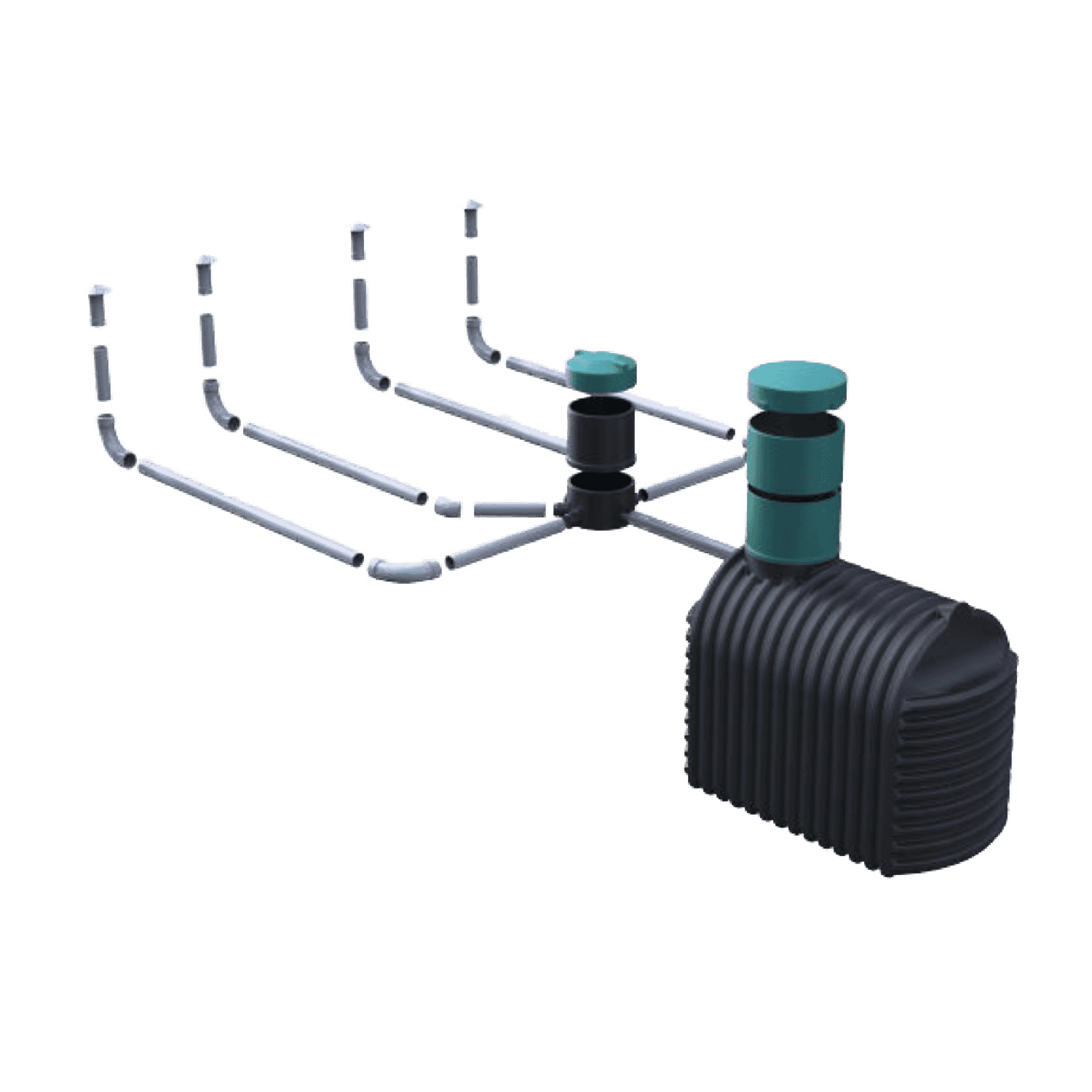

What You Get

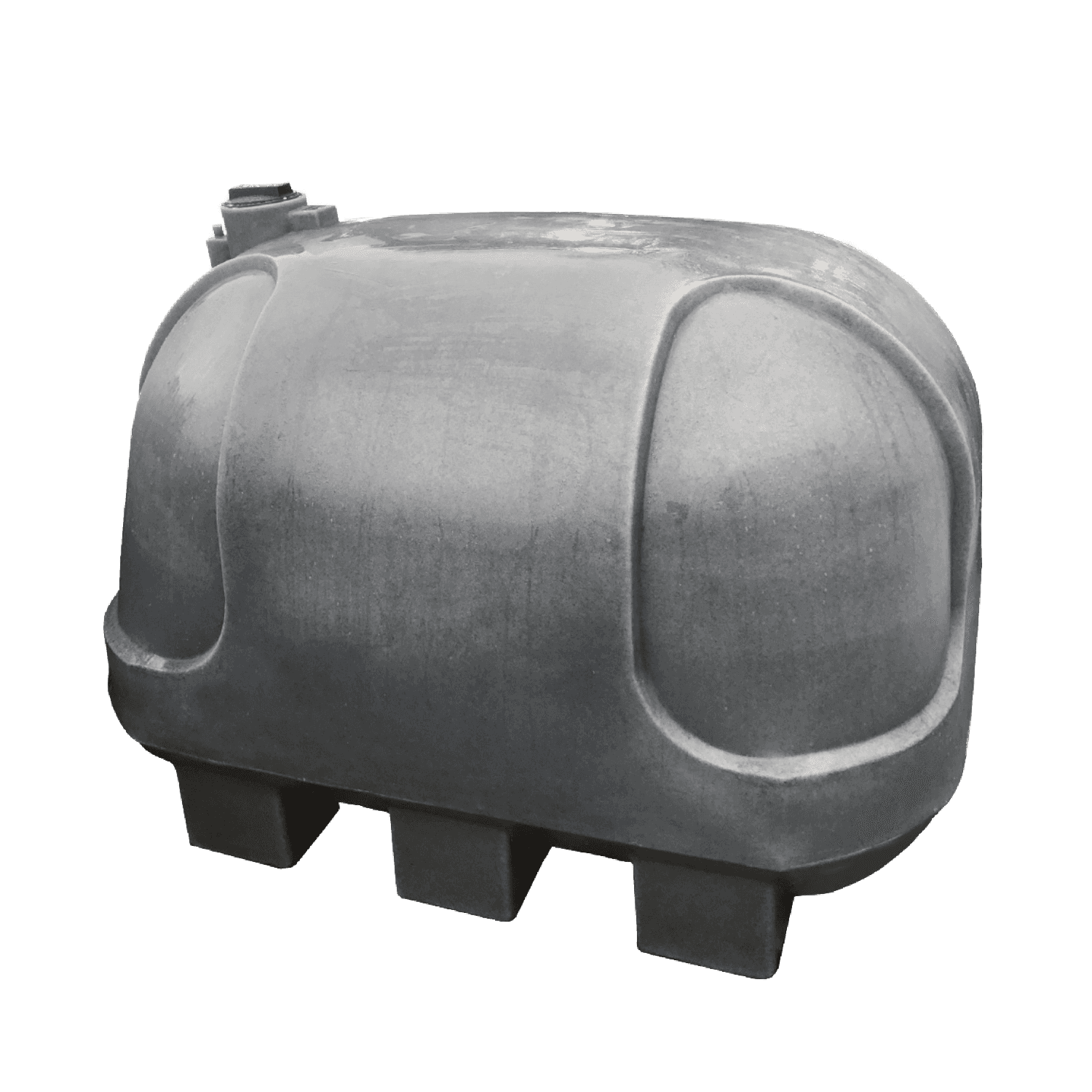

Septic tank Septank 3000.
Connection of the septic tank with a distribution chamber: PVC pipe 100×2.2x2000mm (1 pc.), Double socket 110 (1 pc.).
Distribution chamber 1 pc.
Distribution pipes: PVC pipe 110×2.2x2000mm (2 pcs.), PVC pipe 110×2.2x1000mm (2 pcs.), PP elbow 110/90 (2 pcs.), PP elbow 110/45 (2 pcs.).

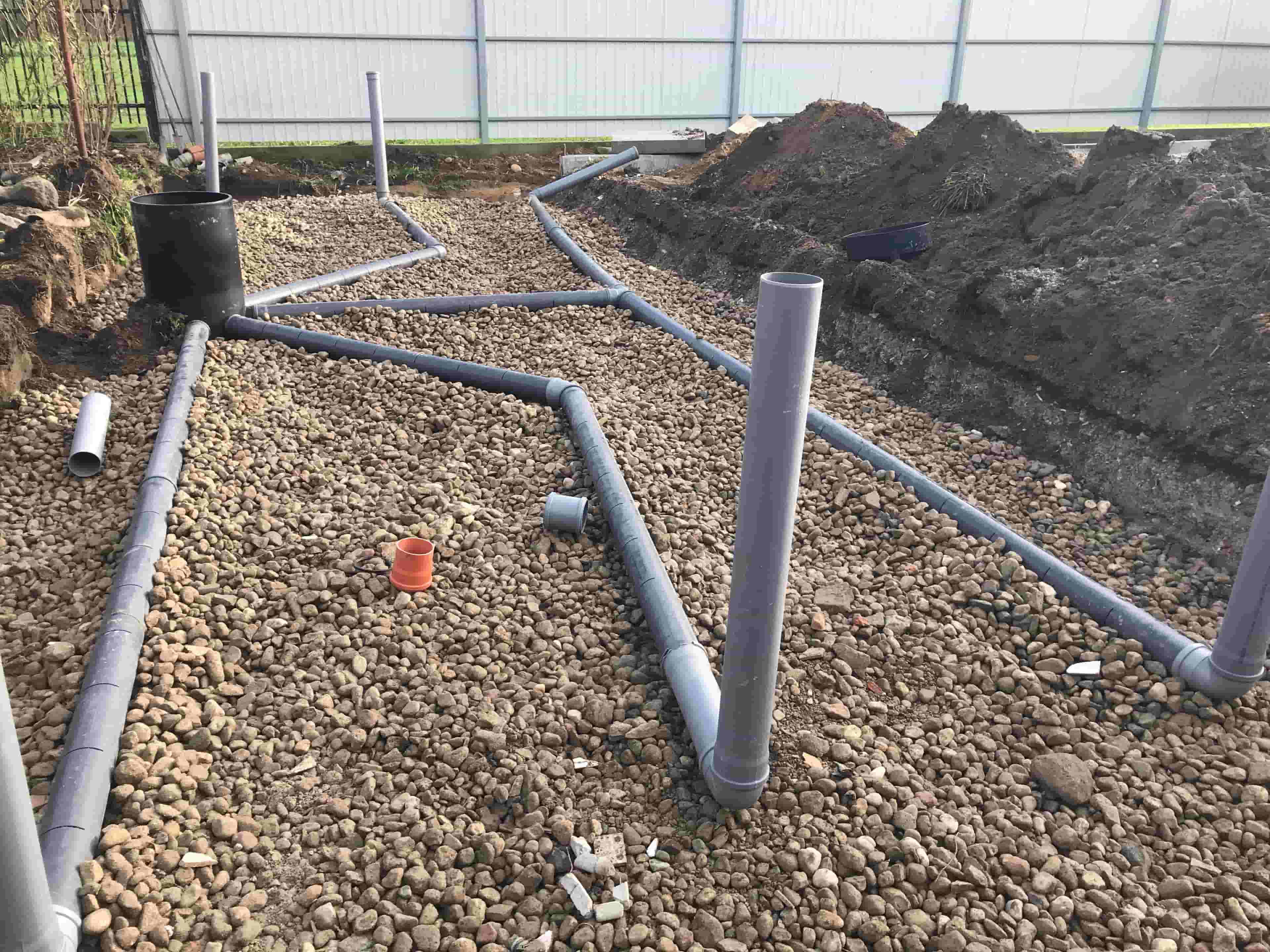

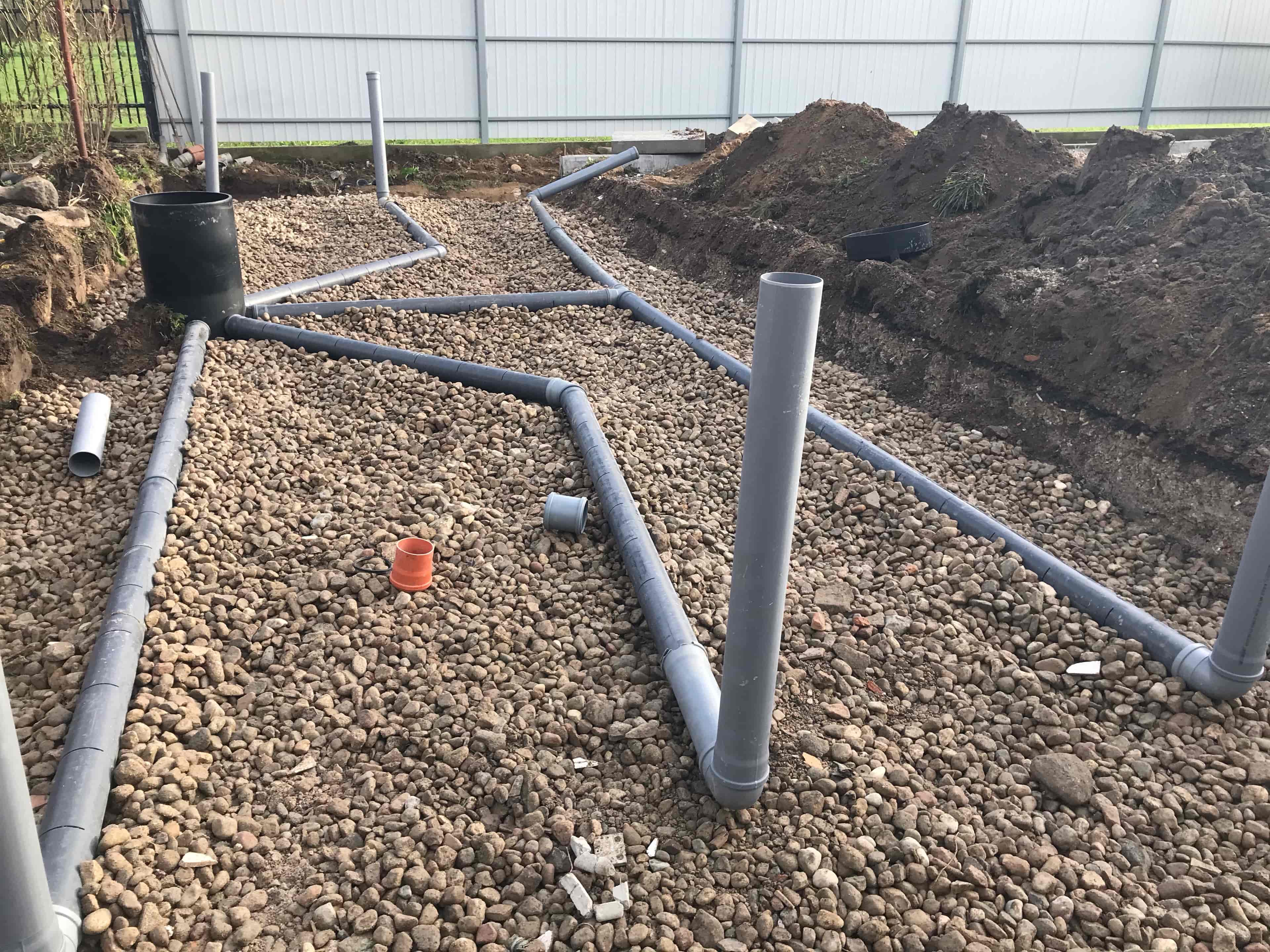

Percolation pipes: PVC pipe 110×2.2x2000mm (40 pcs.).
Connection of percolation pipes with vent pipes: PP elbow 110/90 (3 pcs.), PVC pipe 110×2.2x2000mm (4 pcs.).
Ventilation stack 110/315 mm (4 pcs.).
Geotextile (80 m).
