Distribution Chamber

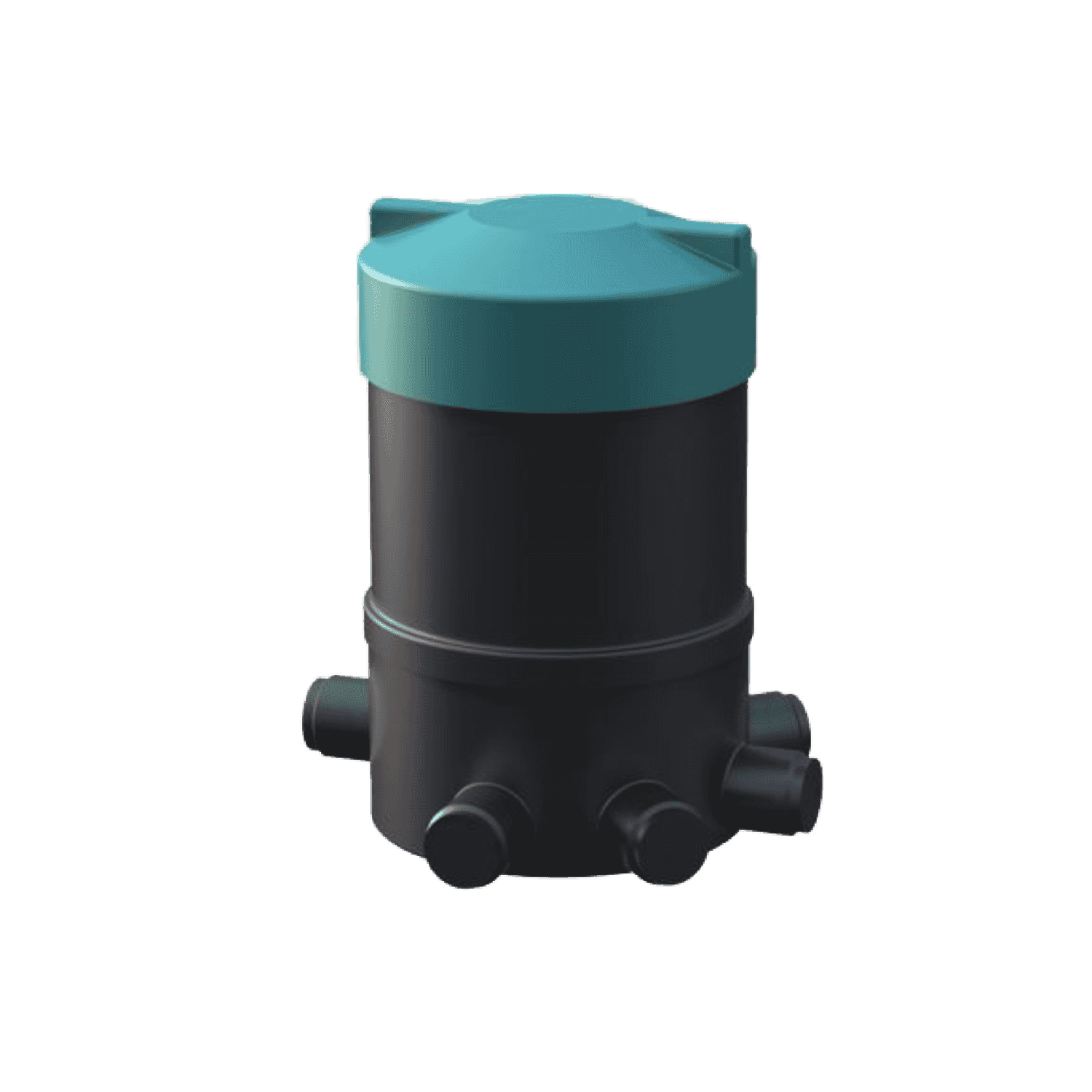

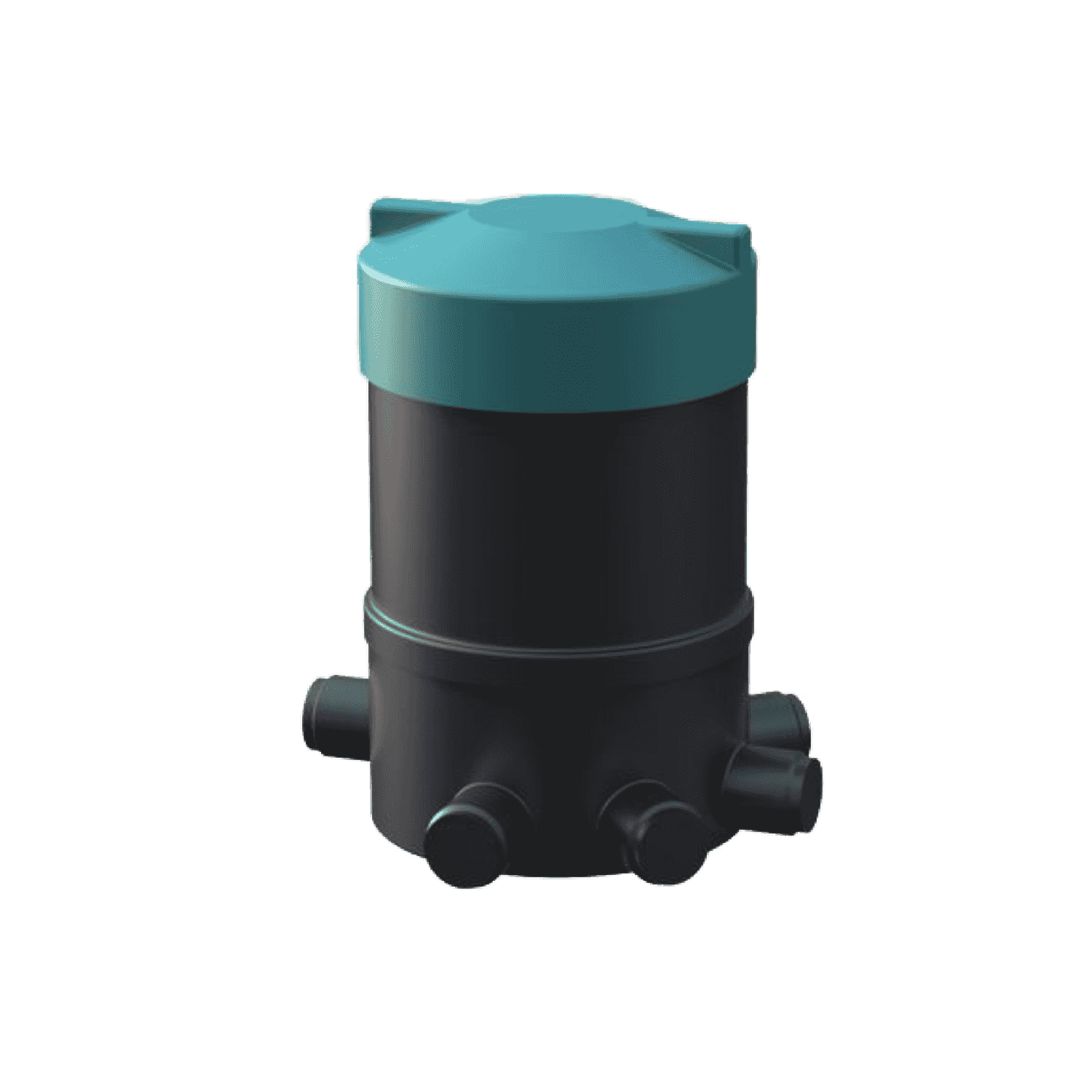

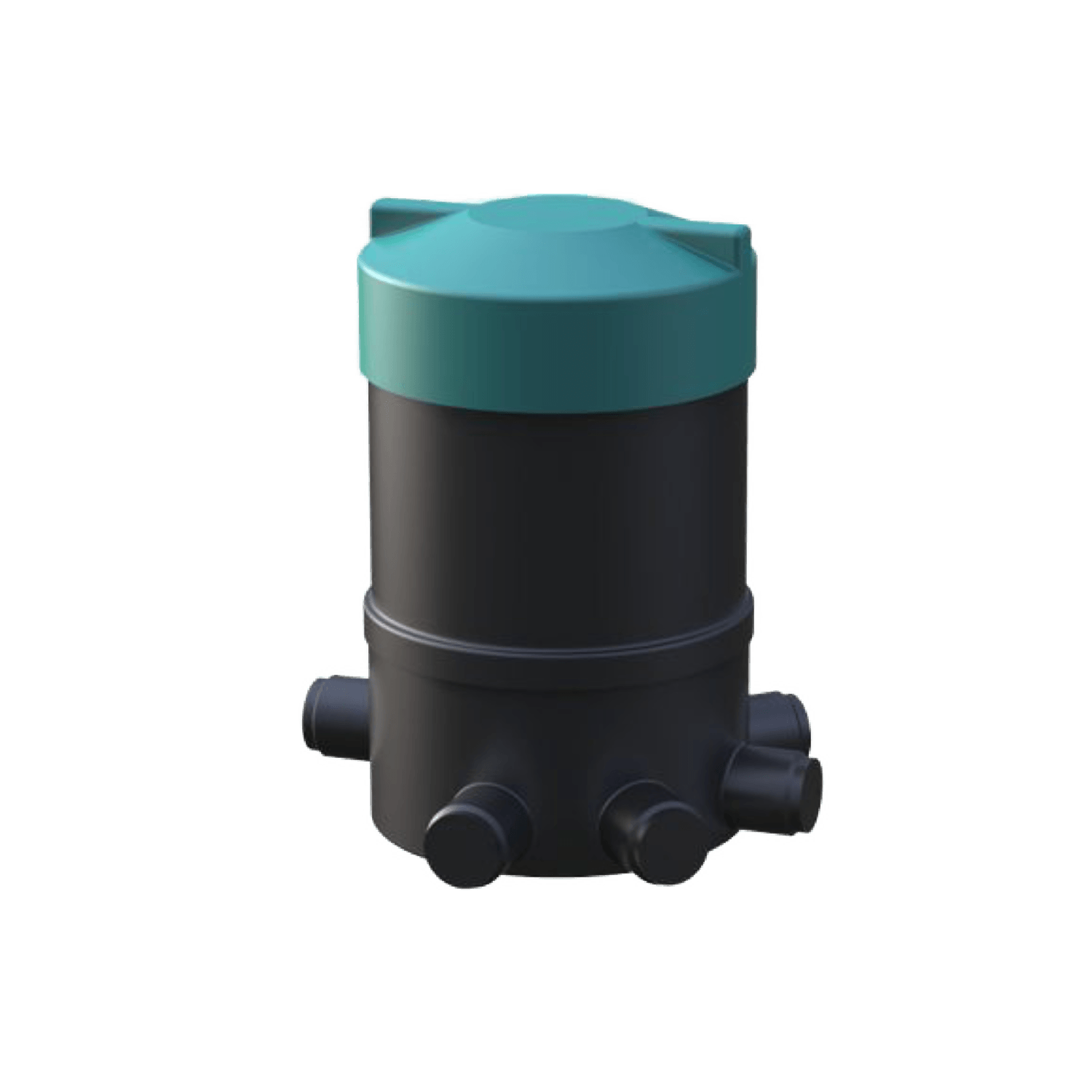

The purpose of the distribution chamber is to evenly distribute sewage to the drainage system and allows for periodic inspection of the installation. The chamber is made of polyethylene using the rotational molding method. The chamber has a diameter of 480 mm and a total height of 750 mm. In case of installation at greater depths, an extension should be ordered. The chamber is equipped with a tight polyethylene hatch cover with a diameter of 490 mm. The inlet hole with a diameter of 110 mm is located at a height of 95 mm from the base, and the outlets with a diameter of 110 mm are located 65 mm from the base of the chamber. The chamber has 5 outlet holes for connection to distribution pipes. The number of outlet holes used depends on factors such as the number of users, soil type, and plot dimensions.
