OSG-DR4
Traditional sewage treatment plant
Traditional treatment plants offered by JFC consist of a septic tank with a drainage system. Septic tanks are designed to remove suspended solids from domestic wastewater from residential buildings, using processes of sedimentation, flotation, and filtration, as well as fermentation of the sludge formed from the retained suspensions. Subsequently, the wastewater, after preliminary treatment in the septic tank, is directed to the drainage system, which consists of perforated pipes laid in the ground, through which it is dispersed into the soil. As it flows through its layers, biological processes occur that lead to further purification under aerobic conditions.














OSG-DR4

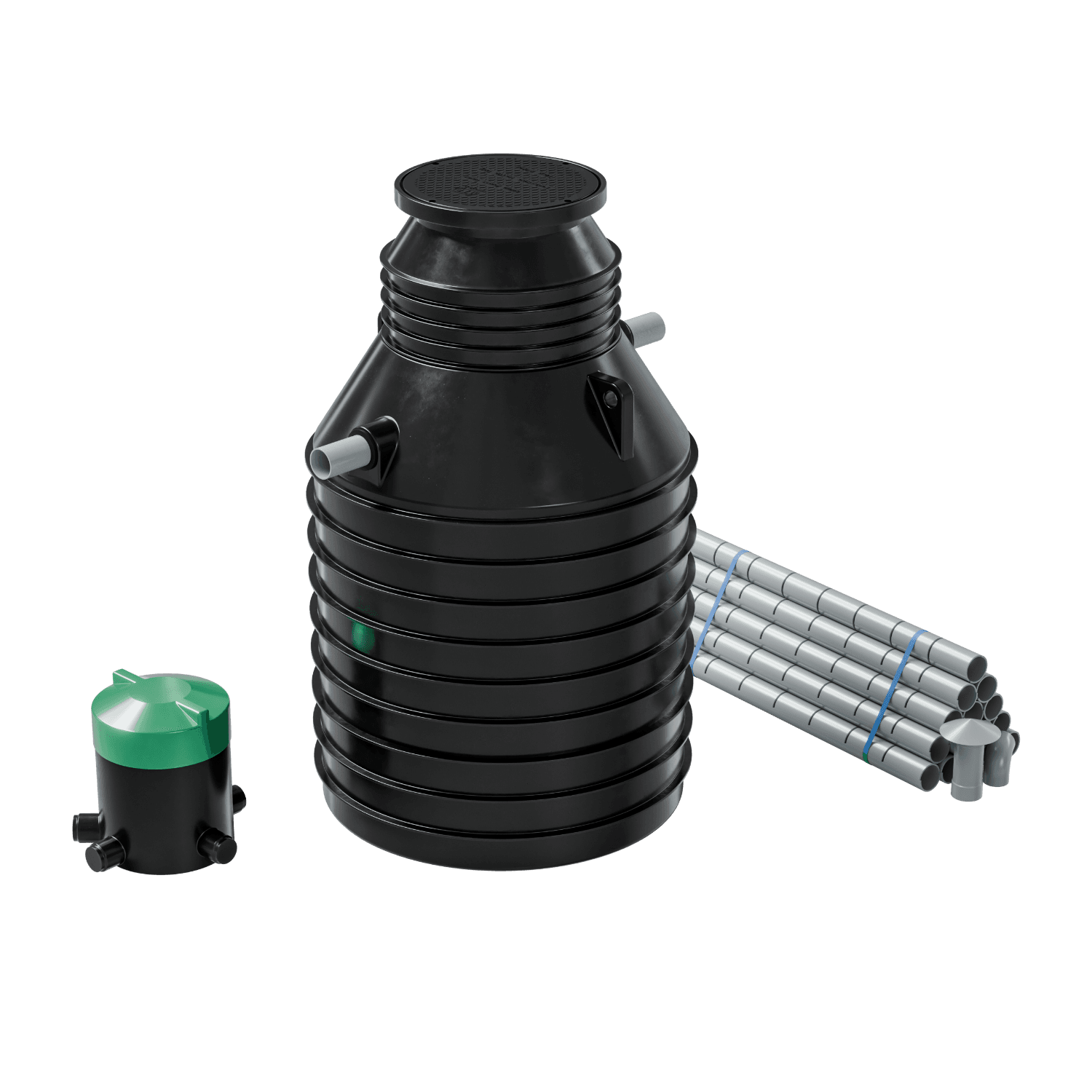

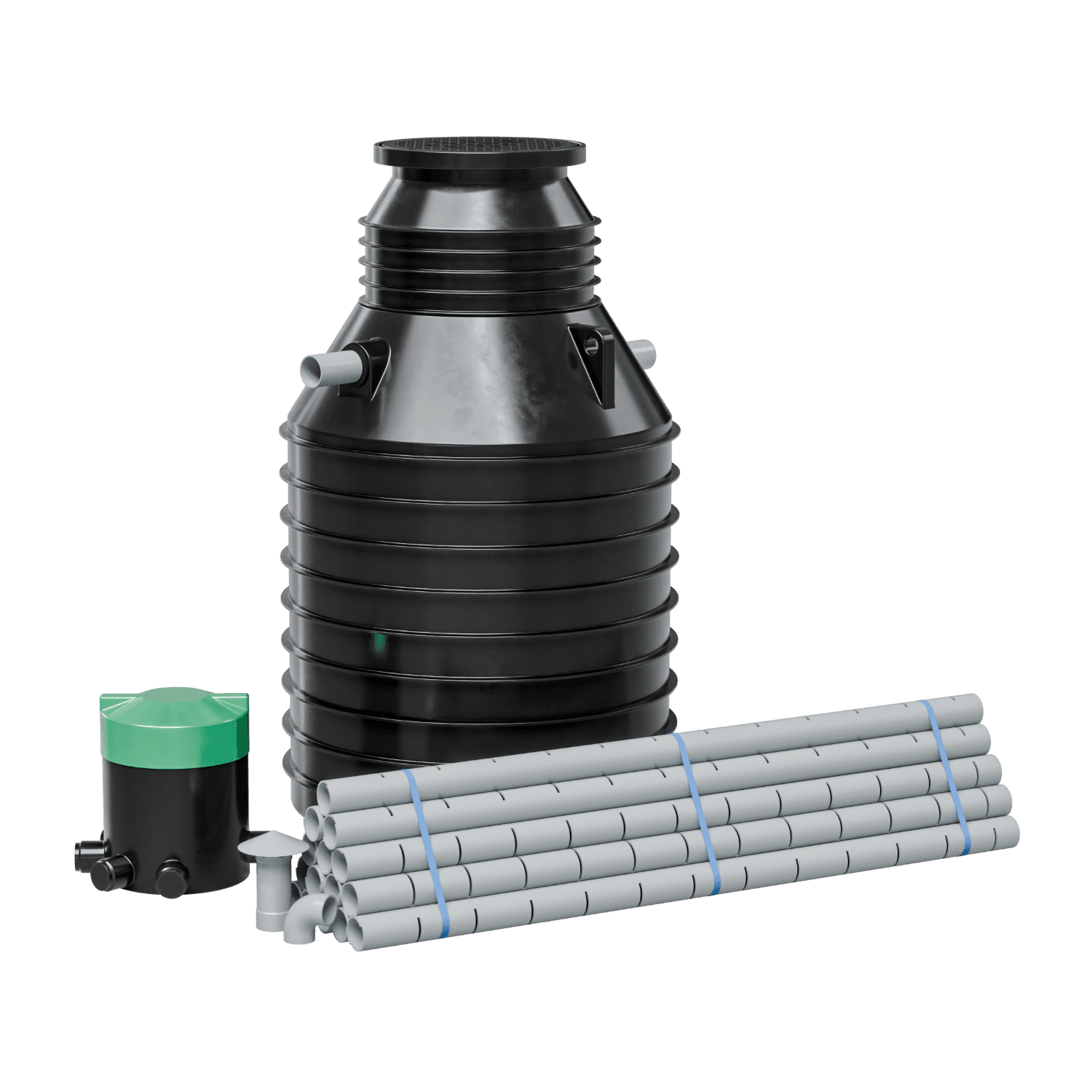

Equipment
- Septank 2000 Decaying Settler.
- Connection of the decay settler with the distribution chamber: PVC pipe 100×2.2x2000mm (1 piece).
- Distribution well 1 piece.
- Distribution pipes: PVC pipe 110×2.2x2000mm (2 pcs.), PP elbow 110/90 (2 pcs.).
- Soakaway pipes: PVC pipe 110×2.2x2000mm (20 pcs.).
- Connection of drainage pipes with ventilation chimneys: PP elbow 110/90 (3 pcs.), PVC pipe 110×2.2x2000mm (3 pcs.).
- Geotextile (40 m).
