Distribution well

The purpose of the distribution chamber is to evenly distribute wastewater to the drainage system, and it also allows for periodic inspection of the installation. The chamber is made of polyethylene using the rotational molding method. The diameter of the chamber is 480 mm, and the total height of the chamber is 750 mm. In the case of installation at a greater depth, an extension must be ordered. The chamber is equipped with a sealed polyethylene manhole cover with a diameter of 490 mm. The inlet opening with a diameter of 110 mm is located 95 mm from the base, while the outlet openings with a diameter of 110 mm are located 65 mm from the base of the chamber. The chamber has as many as 5 outlet openings for connection to distribution pipes. The number of utilized outlet openings depends on, among other factors, the number of users, the type of soil, and the dimensions of the plot.

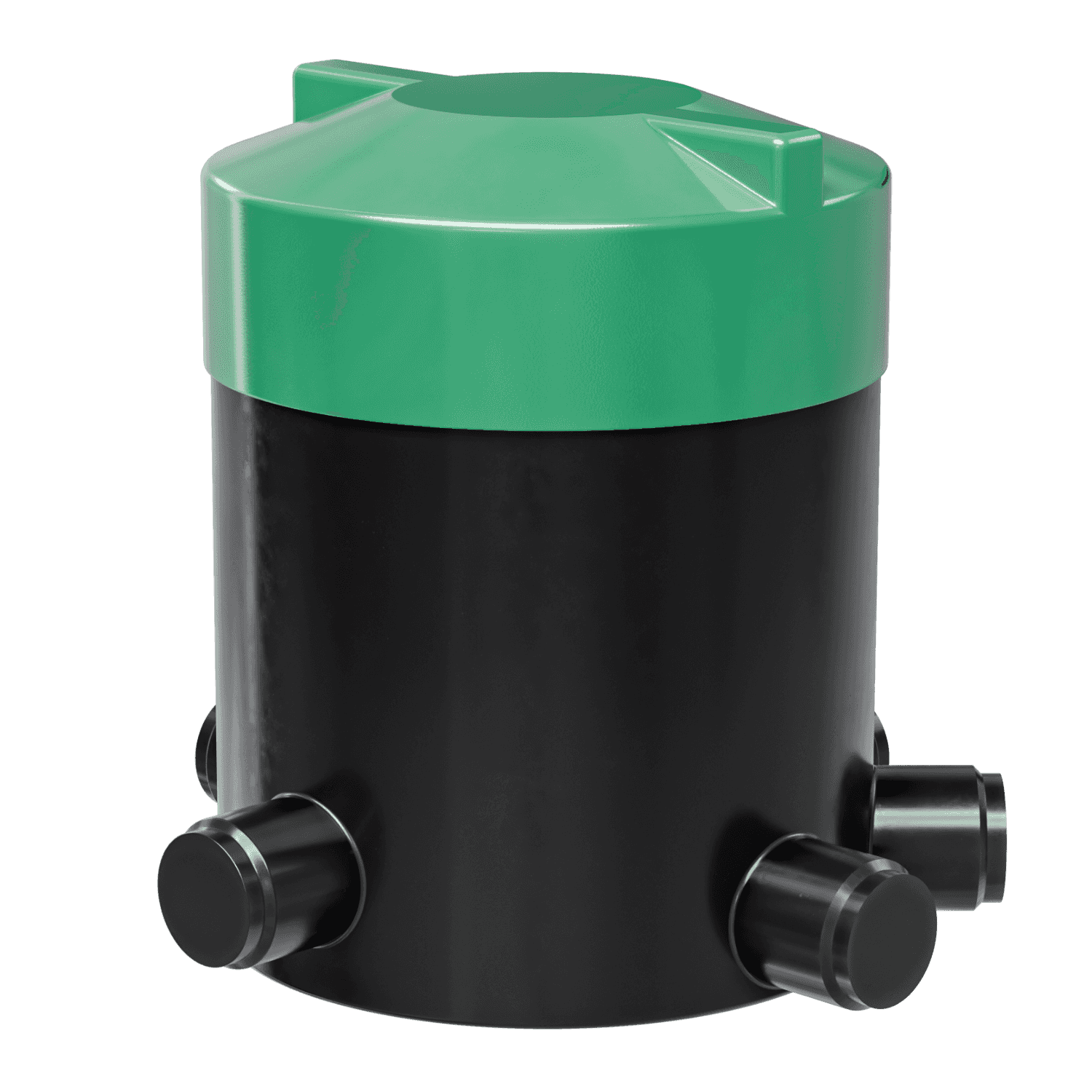

JFC Poland - Distribution well (SR750) - 0

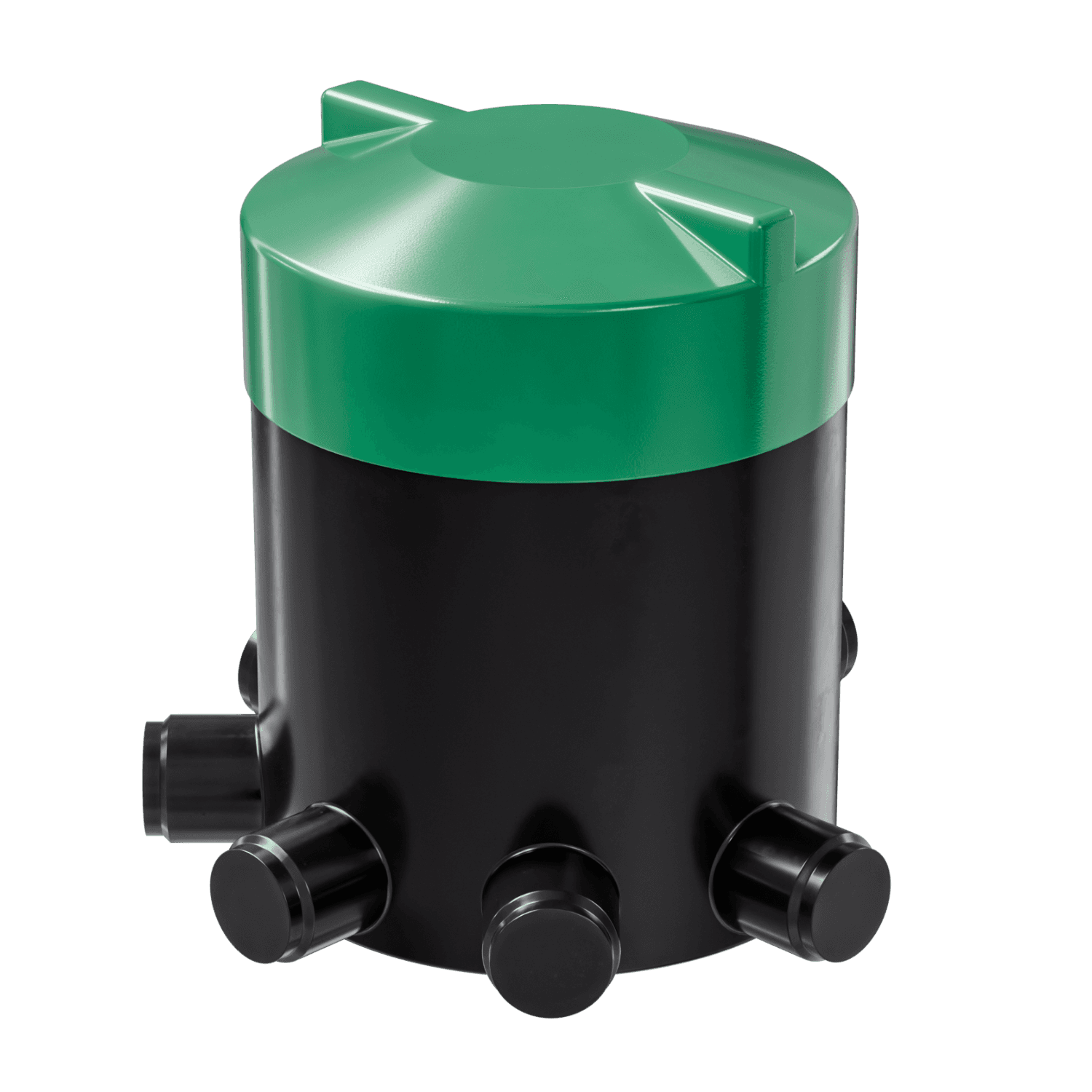

JFC Poland - Distribution well (SR750) - 1

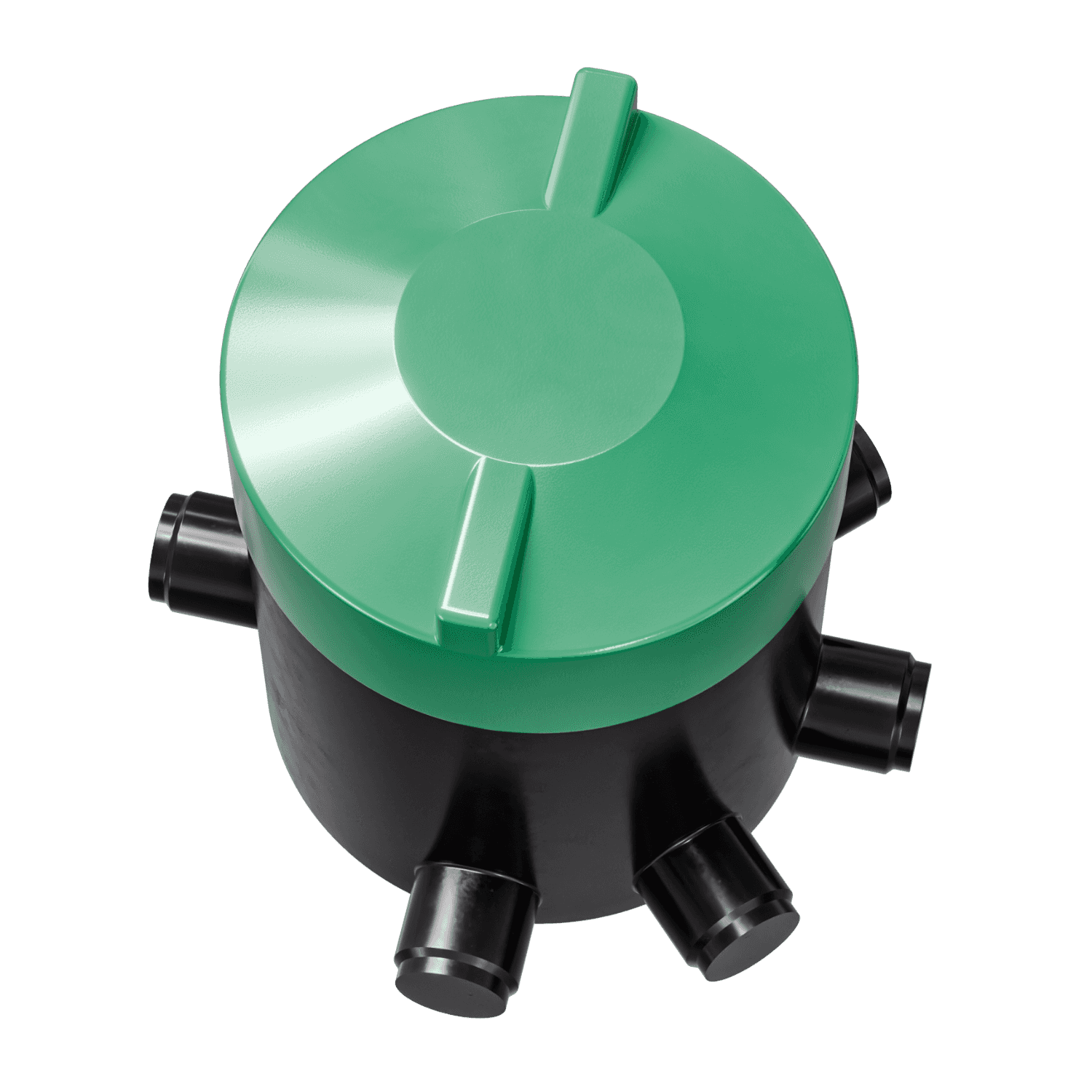

JFC Poland - Distribution well (SR750) - 2

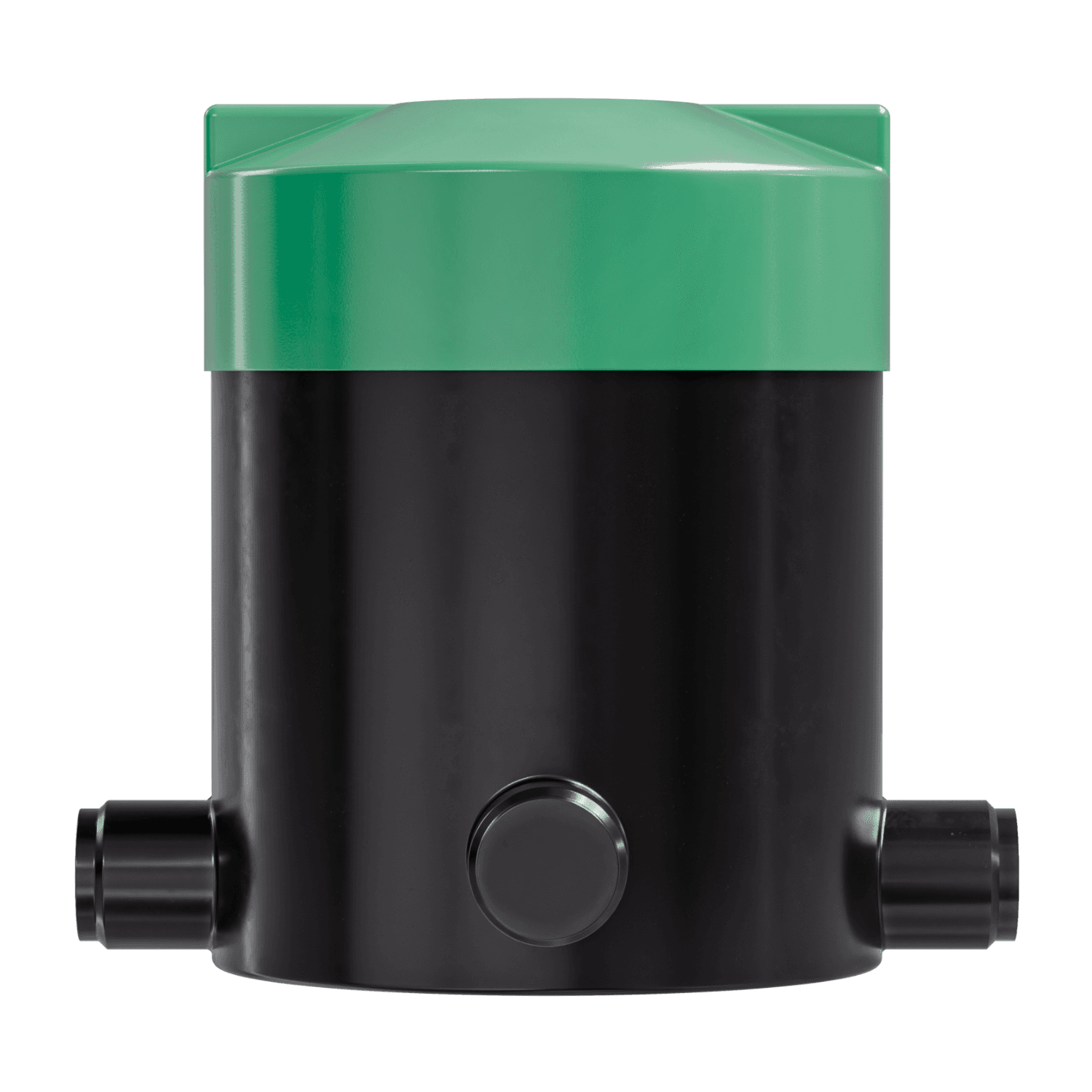

JFC Poland - Distribution well (SR750) - 3

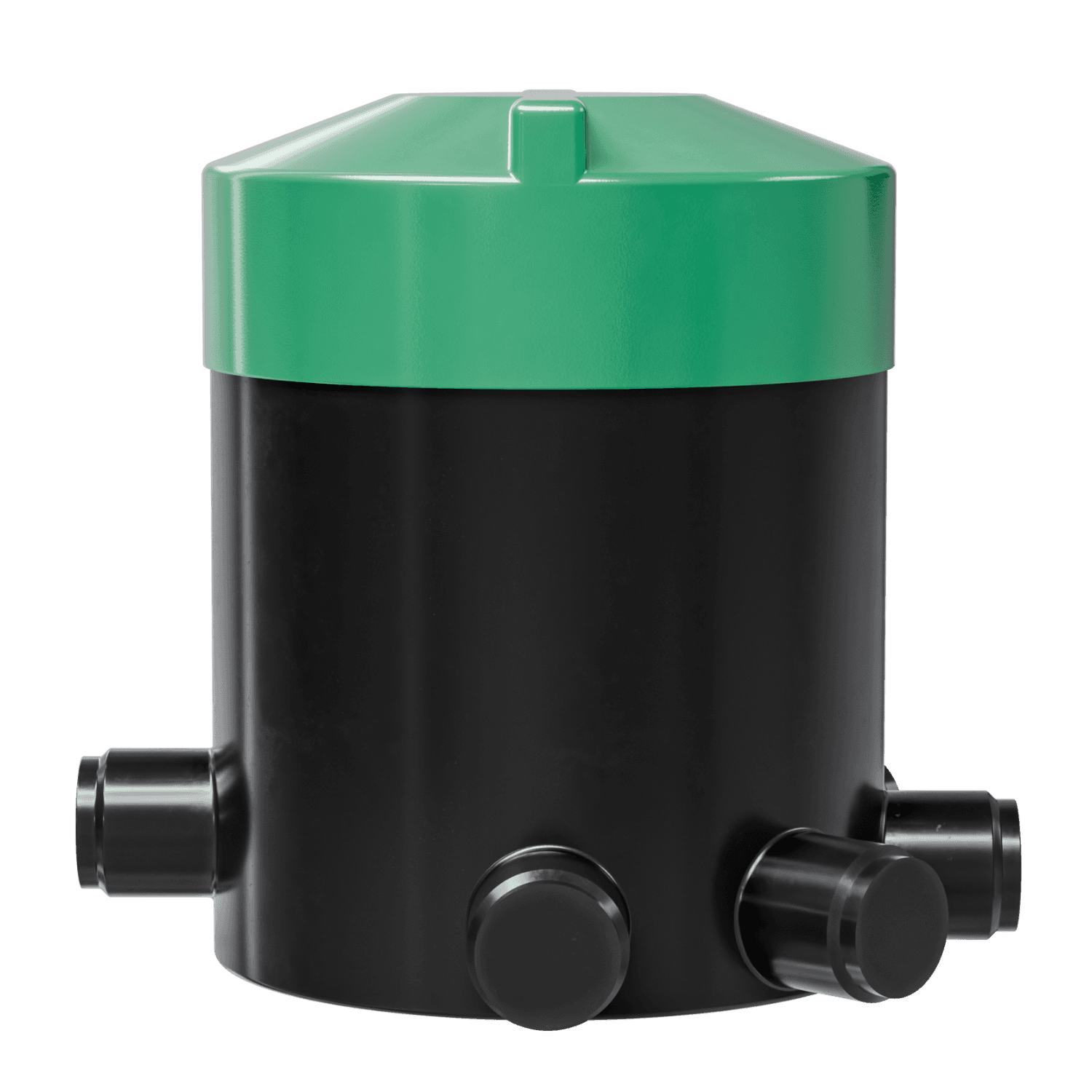

JFC Poland - Distribution well (SR750) - 4

information
information

workspace_premium

SR750

Certificates

JFC Poland certyfikat - ISO-27001:2013
JFC Poland certyfikat - ISO-9001:2015
JFC Poland certyfikat - B
page_info

SR750

Specification

Ilość wyjść5
Średnica [mm]480
Wysokość [mm]750
Otwór [mm]425
PokrywaDN490
